AVMATRIX SC1221 HDMI to SDI Converter

Send one HDMI feed down a long SDI run to dual outputs

The AVMATRIX SC1221 is a pocket-size HDMI to SDI mini broadcast converter that takes one HDMI camera or laptop feed and sends it out on two 3G-SDI outputs at up to 1080p60, so a short HDMI source can drive long SDI cable runs to a switcher, monitor or recorder.

The AVMATRIX SC1221 is a compact broadcast converter built by AVMATRIX for live events and field production.

It takes a single HDMI Type-A input and converts it to a serial digital interface signal on two independent 3G-SDI outputs.

It handles resolutions up to 1080p60, works to the SMPTE 292M, 259M and 424M standards and uses YUV 4:2:2 color throughout, which keeps the picture clean and broadcast grade over long cable runs.

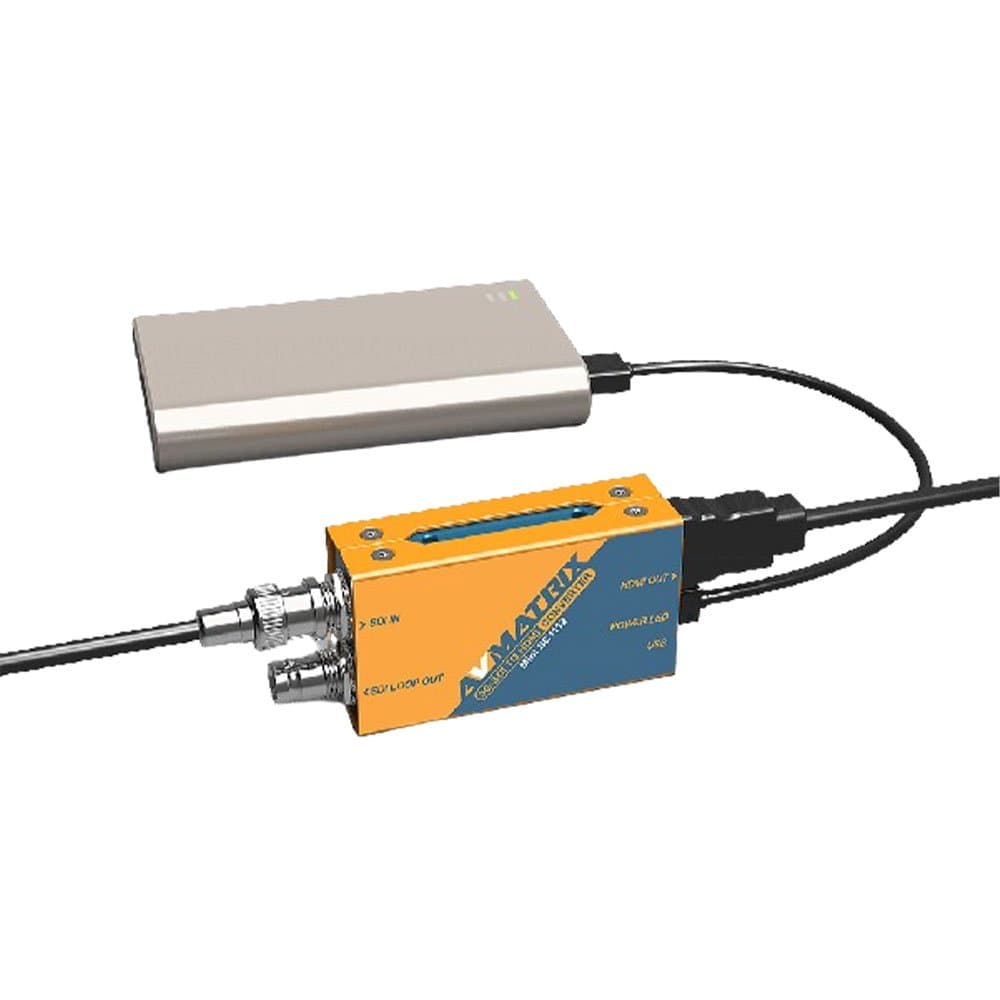

The whole unit measures just 74 x 41 x 23 mm and runs on a Micro USB 5V supply at about 1.5W, so a USB power bank, a laptop USB port or a small 5V adapter can keep it going in the field with no mains outlet nearby.

The point of the SC1221 is reach: HDMI is a short-distance connection, while SDI over BNC cable travels long distances reliably.

Drop this converter next to an HDMI camera, capture card, console or laptop and its dual 3G-SDI outputs feed an SDI backbone that can reach a program switcher, a confidence monitor and a recorder far from the source, all at once.

Because both SDI outputs carry the same feed, one converter covers your live line and a safety recorder in a single pass.

That combination of a full-size HDMI input, two independent 3G-SDI outputs, up to 1080p60 handling and USB power in a pocket-size body makes the SC1221 a handy piece to have on a Sri Lankan live event, broadcast or field-shoot rig.
